PV DC combiner box, available in 4/6/12/16/24 in 1. Surge protection, CE CB certified, for solar panel system. Suitable for solar projects.

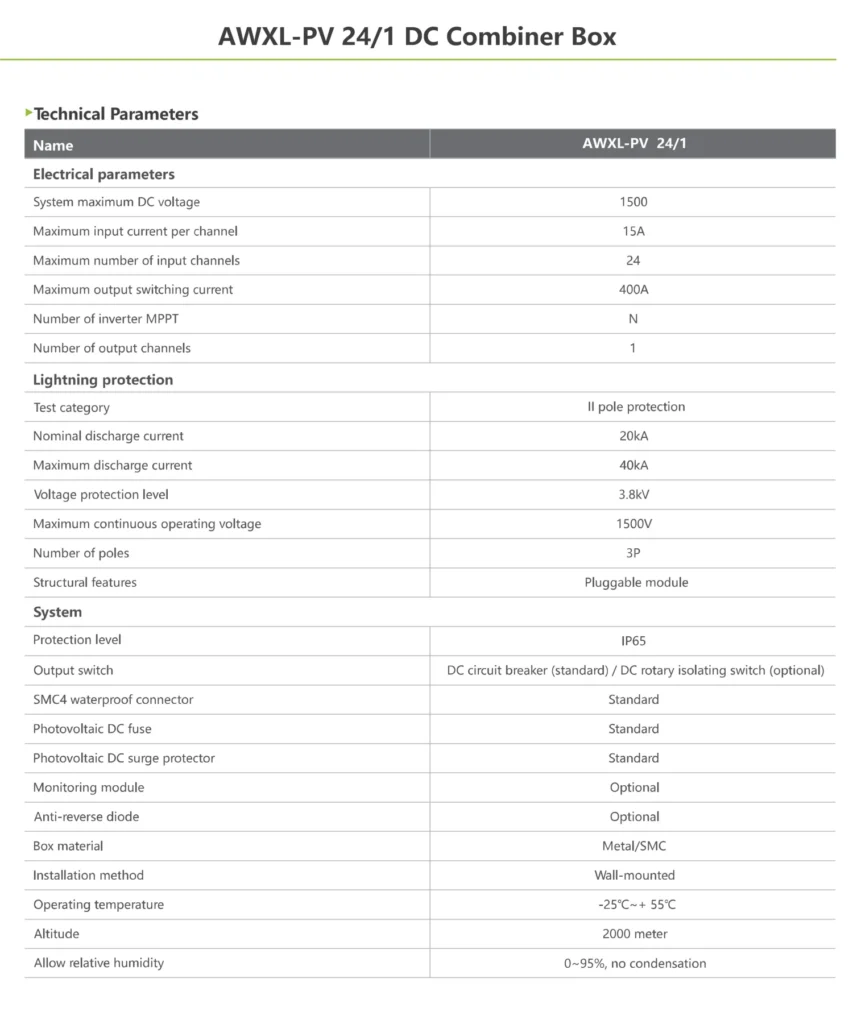

Specification:

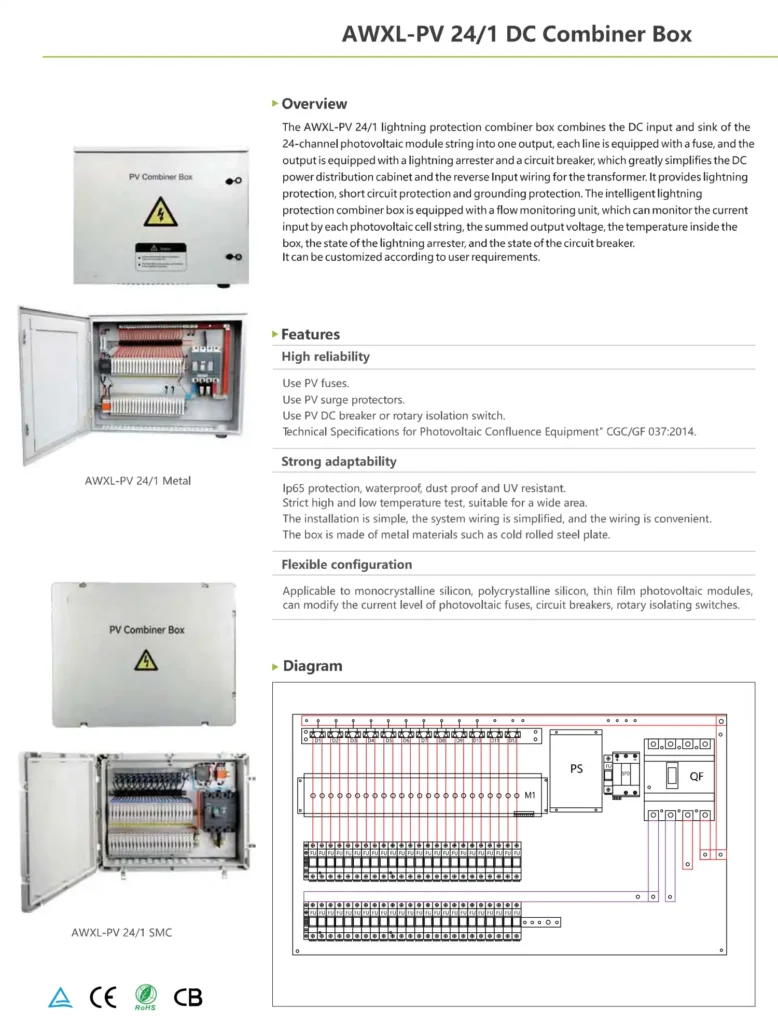

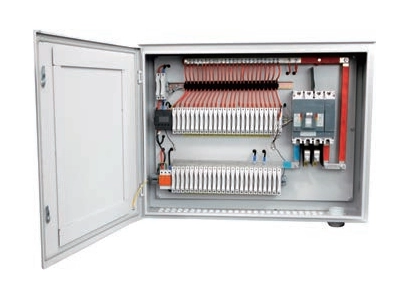

ZOLINSOLAR MDXLD-24/1 lightning protection combiner box combines the DC input and sink of the 24 channel photovoltaic module string into one output, each line is equipped with a fuse, and the output is equipped with a lightning arrester and a circuit breaker, which greatly simplifies the DC power distribution cabinet and the reverse Input wiring for the transformer. It provides lightning protection, short circuit protection and grounding protection.
The intelligent lightning protection combiner box is equipped with a flow monitoring unit, which can monitor the current input by each photovoltaic cell string, the summed output voltage, the temperature inside the box, the state of the lightning arrester, and the state of the circuit breaker.
It can be customized according to user requirements.
